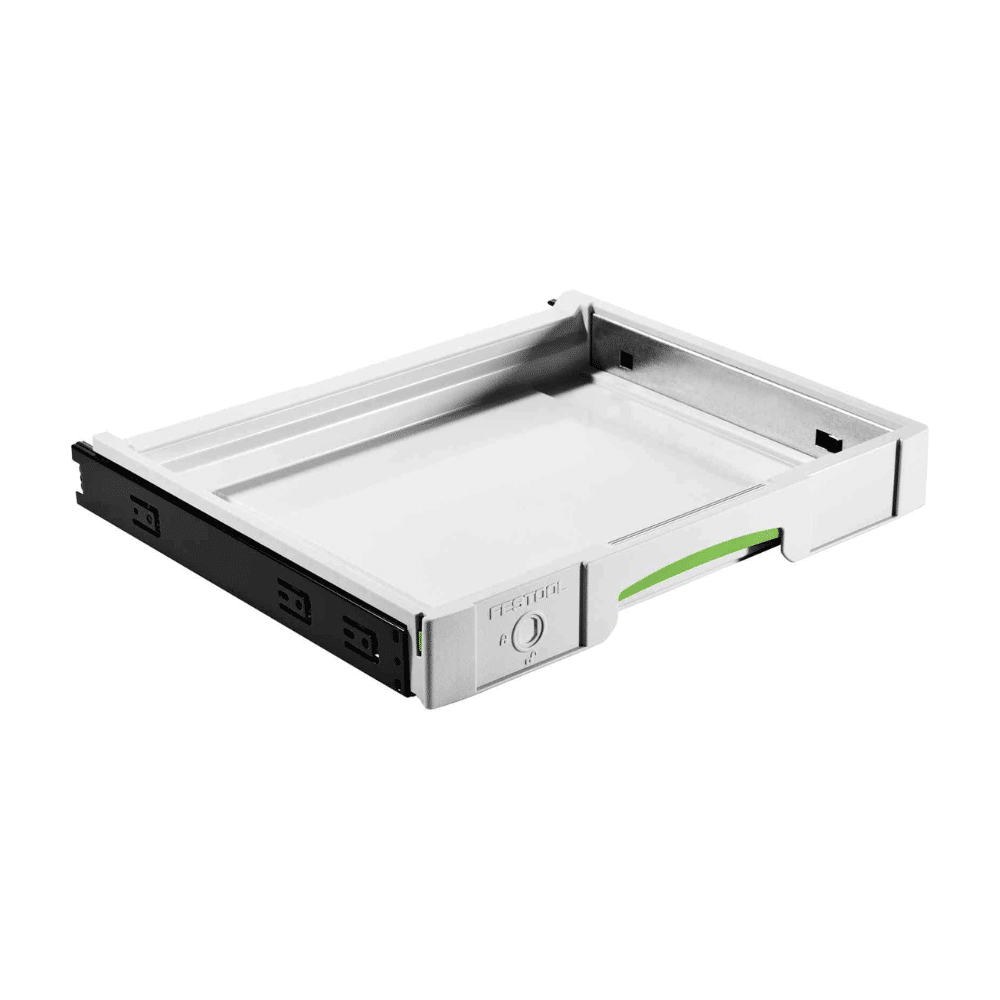

Festool Pull-out drawer SYS-AZ
$53.00
Out of stock
PRODUCT DESCRIPTION

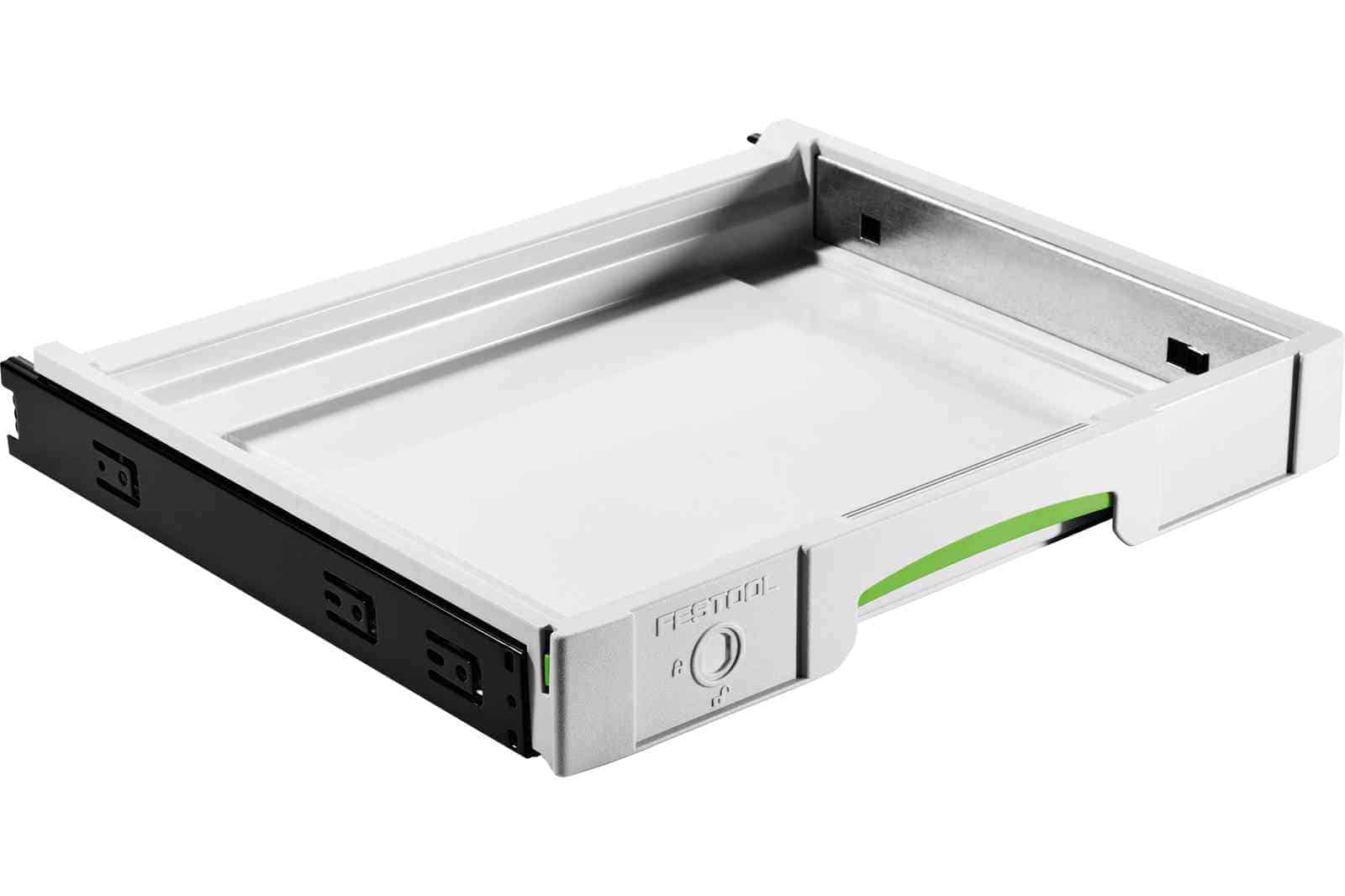

Custom build a storage solution that fits your needs. With individual drawer and slide mechanisms, featuring full-slide capability, each Systainer lid can be fully opened. Designed to work with 32 mm systems for layout and construction. Compatible with Classic or T-LOC SystainerS. Maximum load 44 lbs. SystainerS sold separately, includes five (5) drawers.

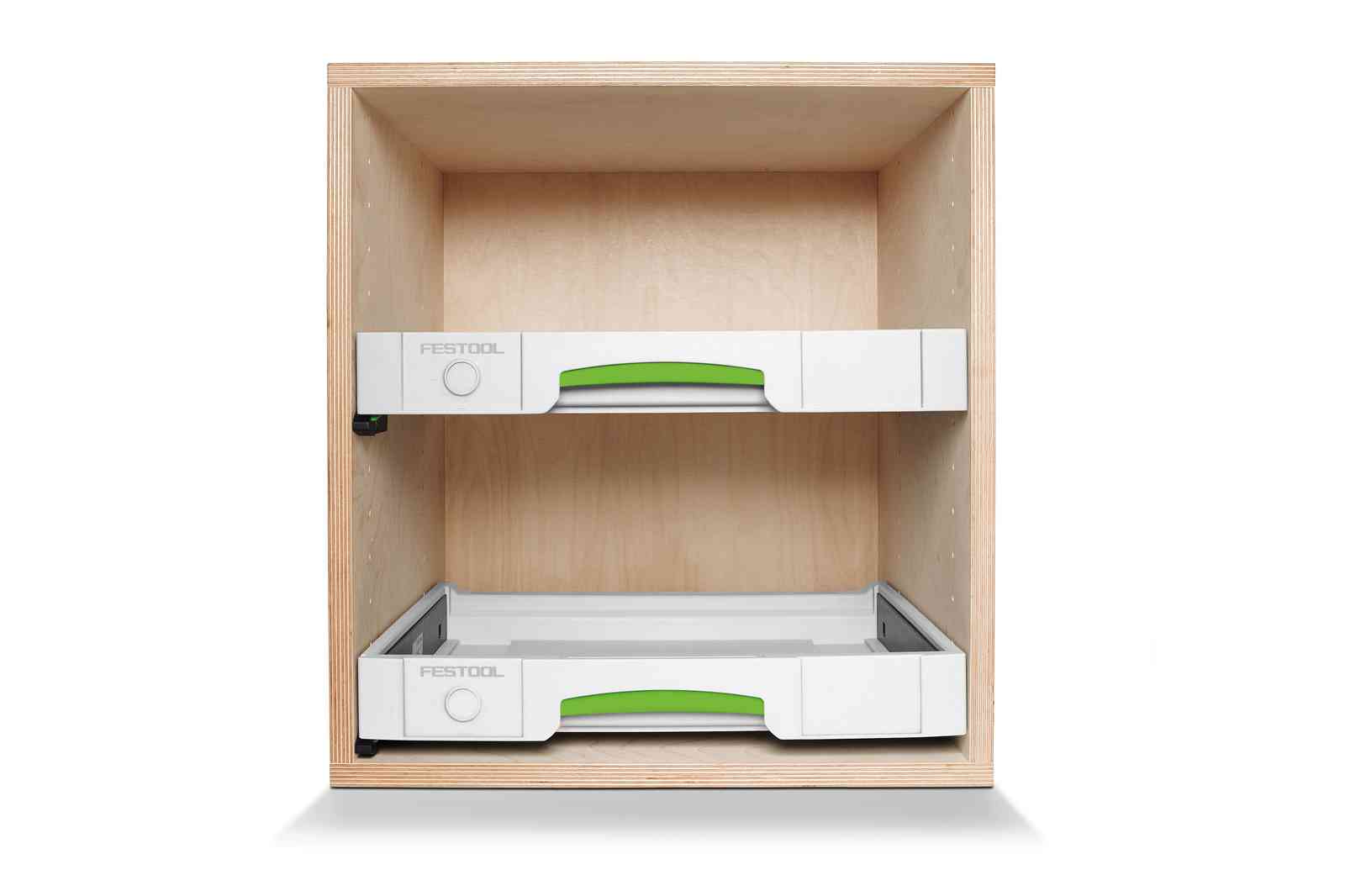

Box construction should be 16-13/16″ (427mm) wide by 14-31/32″ (380 mm) or more deep, with a minimum of 1/2″ (13mm) under the bottom drawer and 5/16″ (8mm) above the top drawer. See manual for more information.
Festool Pull-out drawer SYS-AZ Functions
- Use for Do-It-Yourself Sysport construction to hold Festool SystainerS

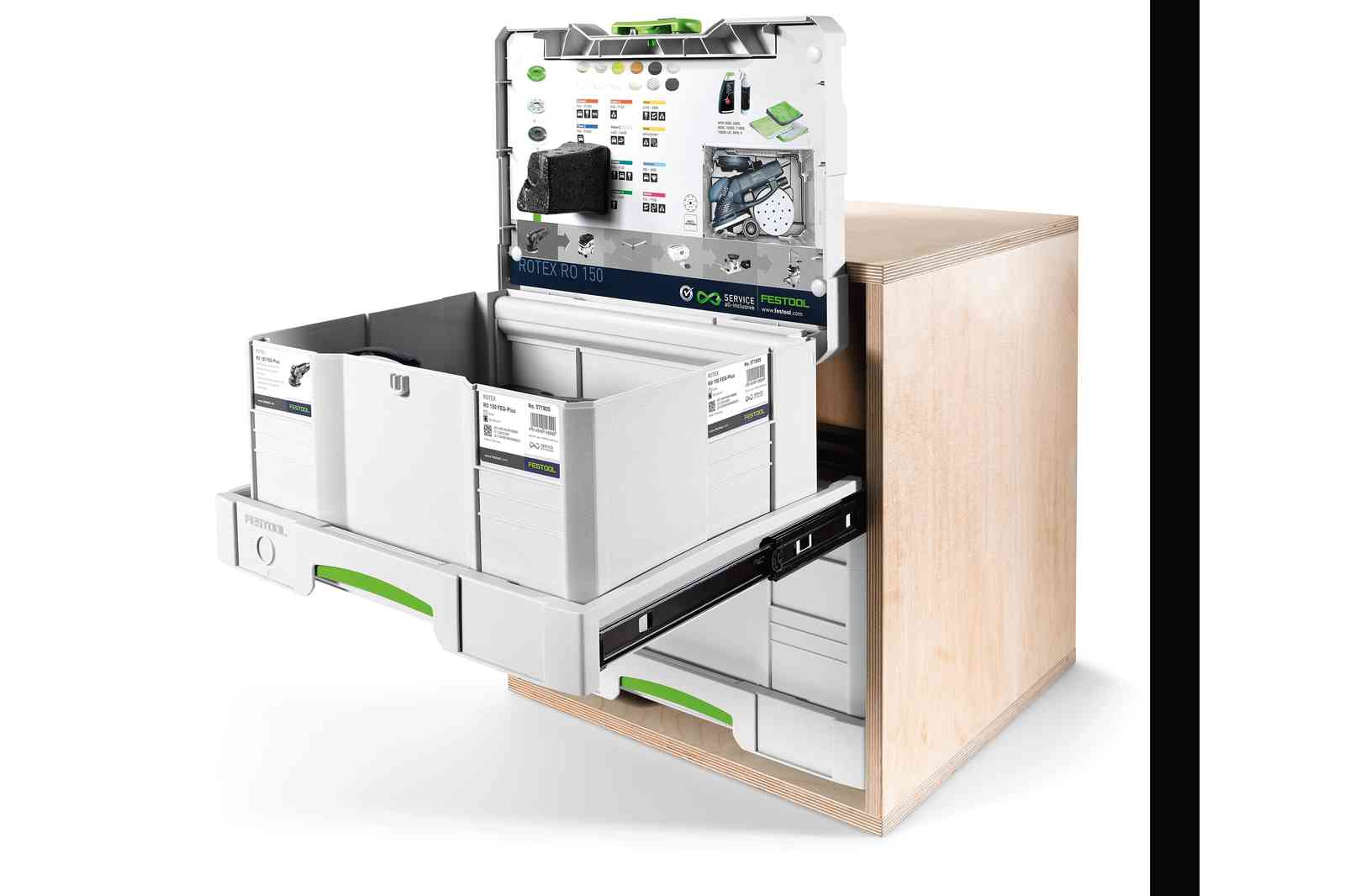

- Slides fully extend allowing you to open SystainerS while in the drawer

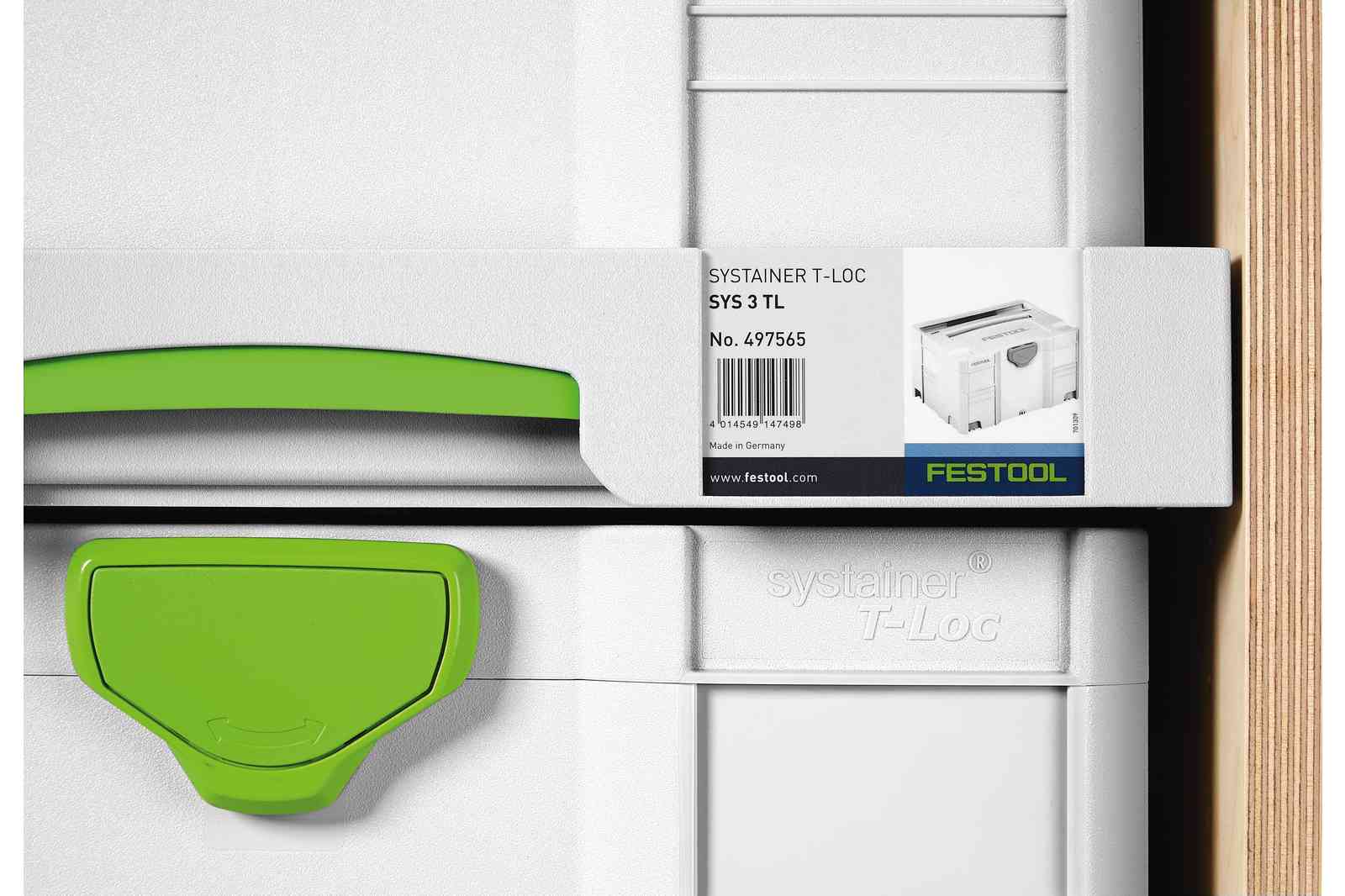

- Compatible with Classic and T-LOC SystainerS
- Optional drawer lock available
- For constructing an individual shelf system
- In 32 hole grid
Product Specifications
- Max. load: 44.09 lbs (20 kg)
- Dimensions (L x W x H): 17″ (425 mm) x 15″ (376 mm) x 2-1/4″ (57 mm)
Technical
Manufacturer Part Number: 500692
ADDITIONAL INFORMATION
Additional information
| Weight | 4.92 lbs |
|---|
